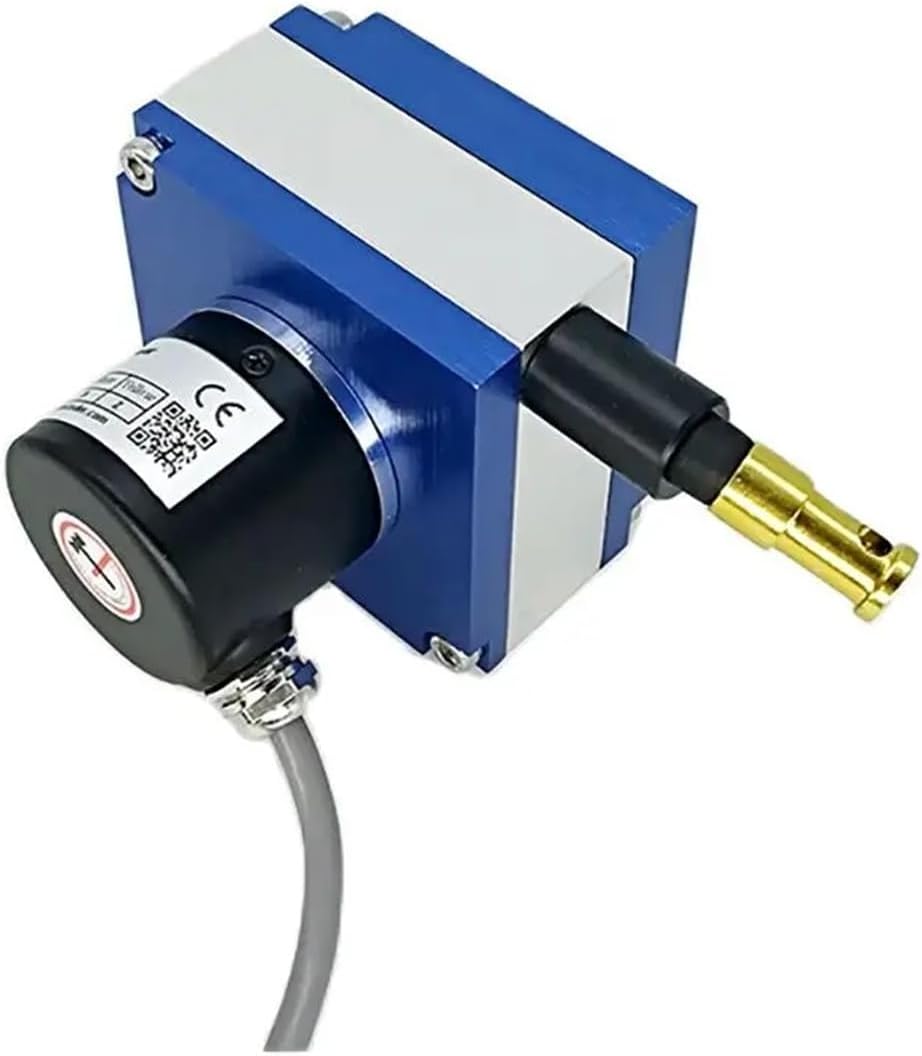

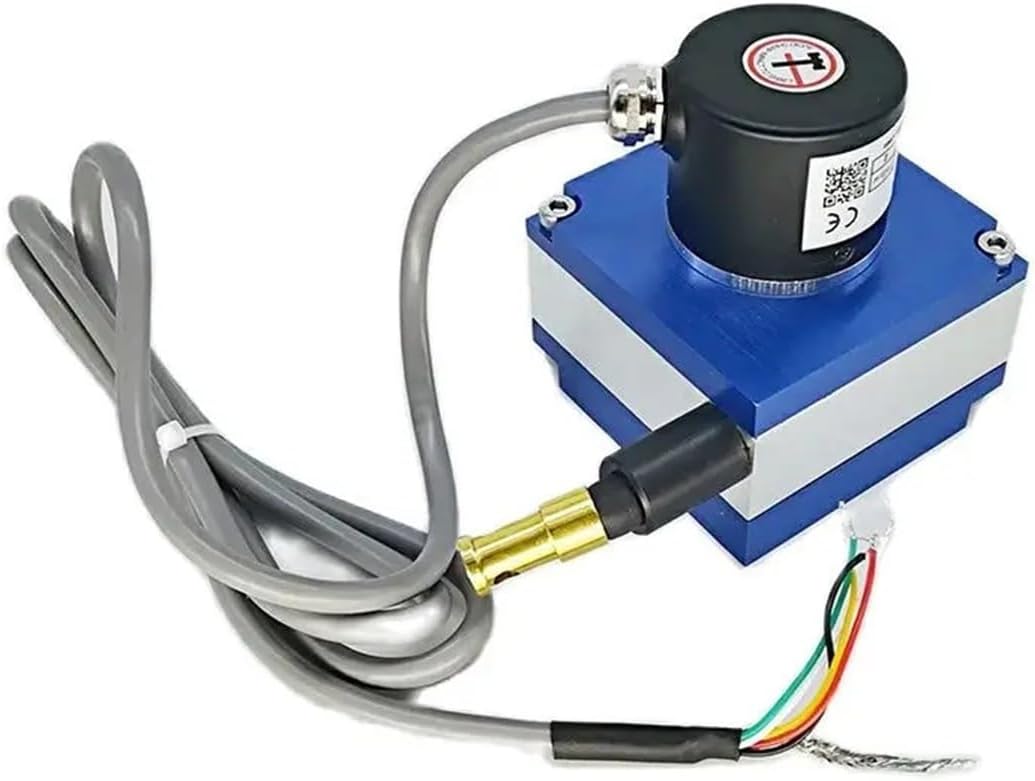

with Counting Sensor CESI-S1500 Depth Distance Measuring Cable String Pot Transducer 1500mm Digital Output Displacement Sensor(Line Driver)
4.8 (75 items)
Limited Time SaleUS$203.61 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 220367854 | Release Date | 2026/05/03 | List Price | US$135.74 | Model Number | 220367854 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Technical parametersResolution0.01,0.02,0.04,0.08 mm / plusRange0~1500mmMethodIncremental encoderAccuracy+/-0.05%FSCurrent consumption60mAOperating Temperature-20°C~80°CFrequency response10K Hz to 50K HzOperating Humidity30~85% No condensationOutput signalAB phase, ABZ in The phaseSupply voltage10-30V DC ,5V DCPhase differenceA, B a difference of 90 degreesCable1MWaveform up and down time2 msAnti-shock10HZ to 1500HZ, 10GStarting torque<;700gImpact resistance20G,11msCircuit characteristicsvoltage, current, push-pull, long-line drive output, open collectorrope specificationsrope 0.6-1.2mm, rope maximum load: 16KGDegree of protectionIP65/IP54weight<;600gspeed600mm/s
- High reliability: Ensure accurate measurement and long-term stability and reliability
- Compact structure, small design, support a wide range of linear displacement measurement
- Convenient installation: quick installation, light weight, improve the use of efficiency
- Diversified output: support a variety of output methods, adapt to different control
- Application: Widely used in industry, mechanical equipment, test and measurement, water conservancy engineering, construction engineering and other fields
| Department | unisex-adult |
|---|---|
| Item Weight | 2.2 pounds |
| Manufacturer | ZTTQSYJZ |
| Number of pieces | 1 |
| Assembly required | No |
| Item model number | ZTTQSYJZ |
| Package Dimensions | 0.39 x 0.39 x 0.39 inches |
